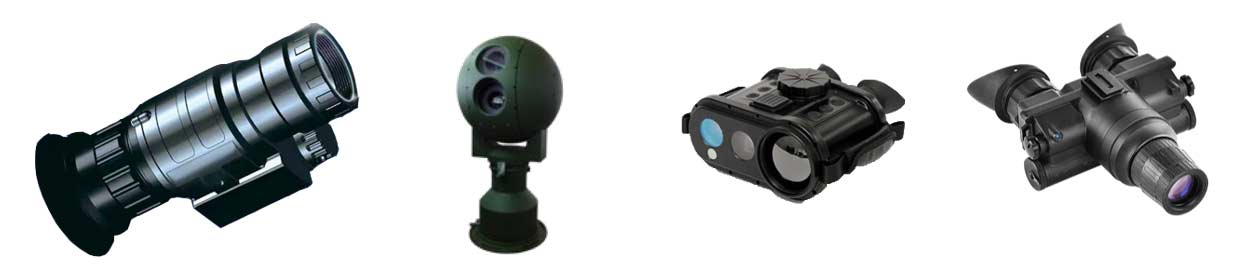

Special UAV Night Vision Equipment

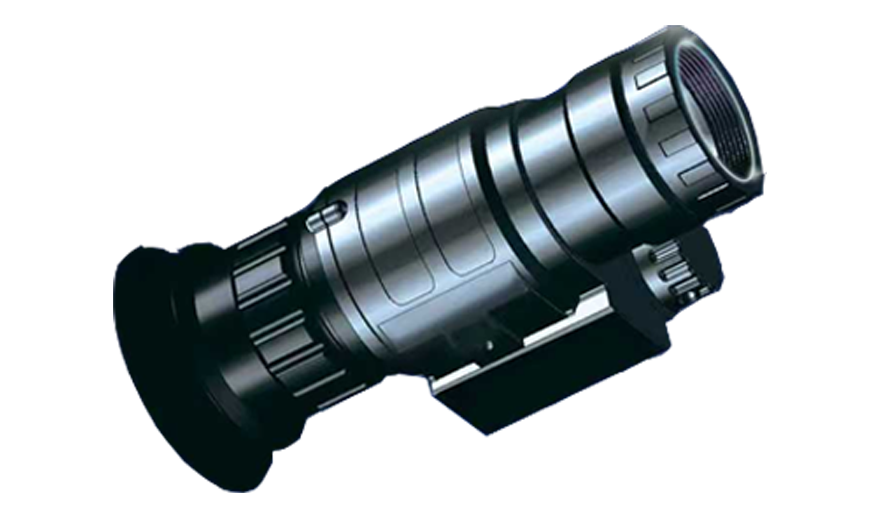

Airborne Night Vision Sensor
CMOSNight vision technology uses a high-sensitivity
The CMOS sensor captures and converts weak light into clear images in low-light environments, combined with noise reduction algorithms and near-infrared enhancement for efficient night vision imaging.
| Overall Parameters |
|---|
| Parameter | Value |
|---|
| Dimensions | 110 mm long |
| Weight | 150 g (with battery) |
| Boot Time | < 4 s |
| Continuous Operating Time | 90 min (built-in battery) |
| Mounting Interface | Standard firearm mount |
| Protection Level | IP68 |
| Human Observation Range | 200m |
| Vehicle Observation Range | 800m |
| Technical Parameters |
|---|
| Parameter | Value |
|---|
| Resolution | 1280×1024 |
| Sensor Type | Monochrome |
| Min Working Illumination | 1×10⁻³ lux |
| Frame Rate | 50Hz |
| Visual Magnification | 1× |
| FOV | 51° |
| Fill Light | 1 |
| Light Sensor | 1 |
