Hydrogen Energy Series

Hydrogen UAV Integrated H2 Production & Refueling Unit Hydrogen Fuel Cell

MA050 Fuel Cell System

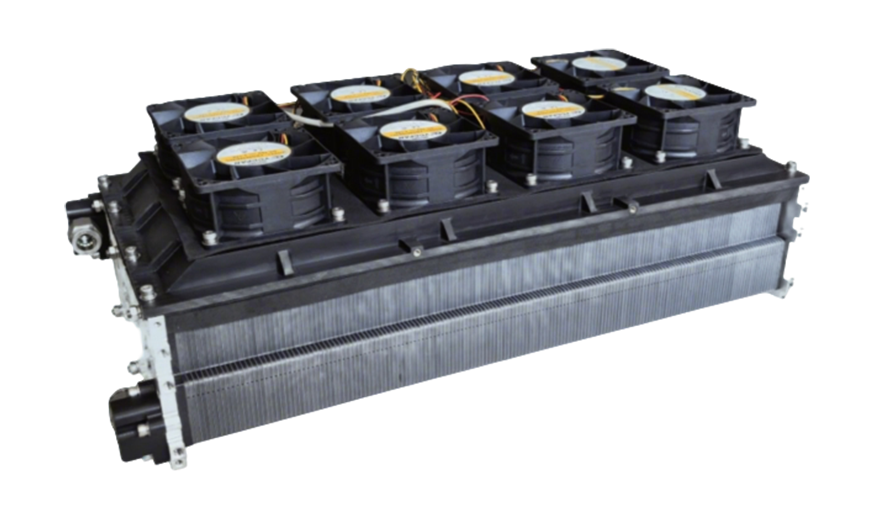

MA050 Hydrogen Fuel Cell

A lightweight hydrogen fuel cell system customized for industrial-grade UAVs, featuring high power density, long endurance, high fuel utilization, and stable operation across wide temperature ranges.

MA050 Fuel Cell System Specifications (Fuel Cell System Specifications)

ItemSpecifications

Rated Power4.6kW

Net Weight7.4kg

Dimension305×227×175mm

Stack Voltage55～85V

Stack Current0～90A

Max Efficiency50%

Operating Temp-5℃～45℃

Instant Hydrogen Flow55NL/min

MA080 Fuel Cell System

MA080 Hydrogen Fuel Cell

Featuring a graphite bipolar plate architecture with smooth power response and strong intake adaptability, suited for heavy-payload UAVs requiring long endurance and stable operation in complex working conditions.

MA080 Fuel Cell System Specifications (Fuel Cell System Specifications)

ItemSpecifications

Rated Power8kW

Net Weight9.5kg

Dimension485.9×226.7×186.1mm

Stack Voltage96～160V

Stack Current0～90A

Max Efficiency50%

Fuel Utilization≥95%

Instant Hydrogen Flow141NL/min
