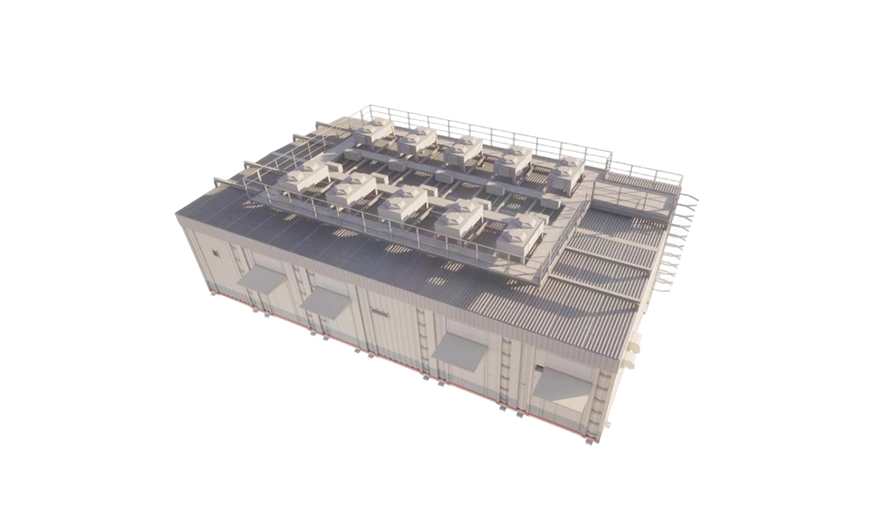

HLDC prefabricated modular data centers are mainly used in various data center IT scenarios, integrating the civil engineering (L0 layer) and electromechanical infrastructure (L1 layer), featuring engineering productization and product modularization.
The core functional area adopts a modular design. Core modules are prefabricated, pre-integrated, and pre-commissioned at the factory and assembled on site like building blocks, with engineering-supporting auxiliary areas. This minimizes on-site civil and electromechanical construction time, reduces waste at the construction site, and enables rapid, green delivery of data center equipment.
Core modules typically include IT modules, power supply modules, and battery modules, which can be designed specifically according to data center requirements of different scales.
Operator IDC, government/enterprise and financial headquarters server rooms, cloud data centers, AI computing centers, and other scenarios—meeting the green, energy-efficient, and rapid deployment needs of data centers and supporting edge computing.
Dimensions:12192×3495×4150mm
Per-module total IT power:≤ 336 kW/module
Power density:≤ 12 kW/cabinet
Cabinets supported:≤ 30 cabinets/module
Cabinet specs:600×1200×2000/2200mm、800×1200×2200mm

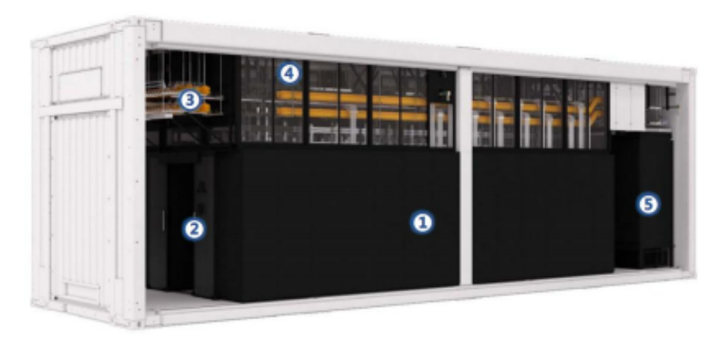

① Cabinet ② Aisle door ③ Bridge ④ Aisle window ⑤ Precision air conditioner

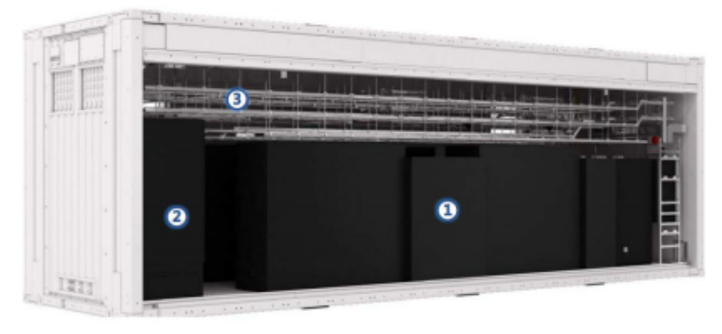

① Power module (LV/MV switchgear, transformer & UPS) ② Precision air conditioner ③ Bridge
Dimensions:12192×3495×4150mm
Main distribution input capacity:630～4500A
UPS：Single unit 200/300/400/500/600 kVA
UPS output voltage distortion:Linear load THDv ≤ 1%, non-linear load THDv ≤ 4%
Power system:380/400/415V±10%，50/60Hz±3Hz

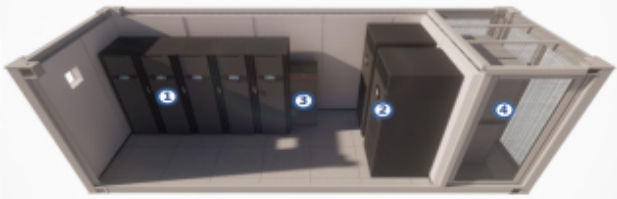

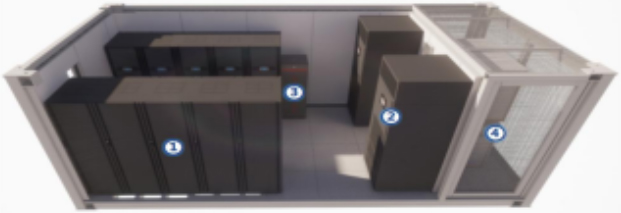

Dimensions:7000×2438×2896mm / 7000×3200×2896mm
Total Weight:Meets equipment and transportation weight requirements
Dust & Water Protection:IP55
Salt Spray Resistance:Meets 1,440-hour salt spray test requirements
Cabinet Lifespan:Equivalent 25-year lifespan
