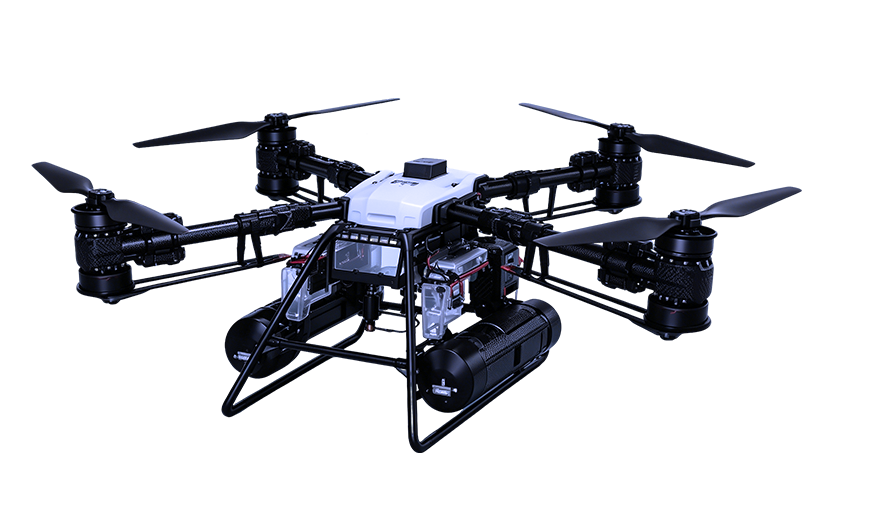

HV-150Hydrogen UAV

HV-150 Hydrogen UAV

HV-150 Hydrogen UAV

A hydrogen-powered model designed for industrial-grade applications, combining heavy payload capacity with long endurance.

HV-150 UAV Specifications (UAV Specifications)

ItemSpecifications
Max Take-off Weight175kg
Standard Payload75kg
Endurance70min
Power SystemHydrogen-electric hybrid
Hydrogen StorageStandard 3L@35MPa (customizable)
Fuel Cell System18kW（Air-cooled）
Lithium Battery2100 W·H (standard configuration)

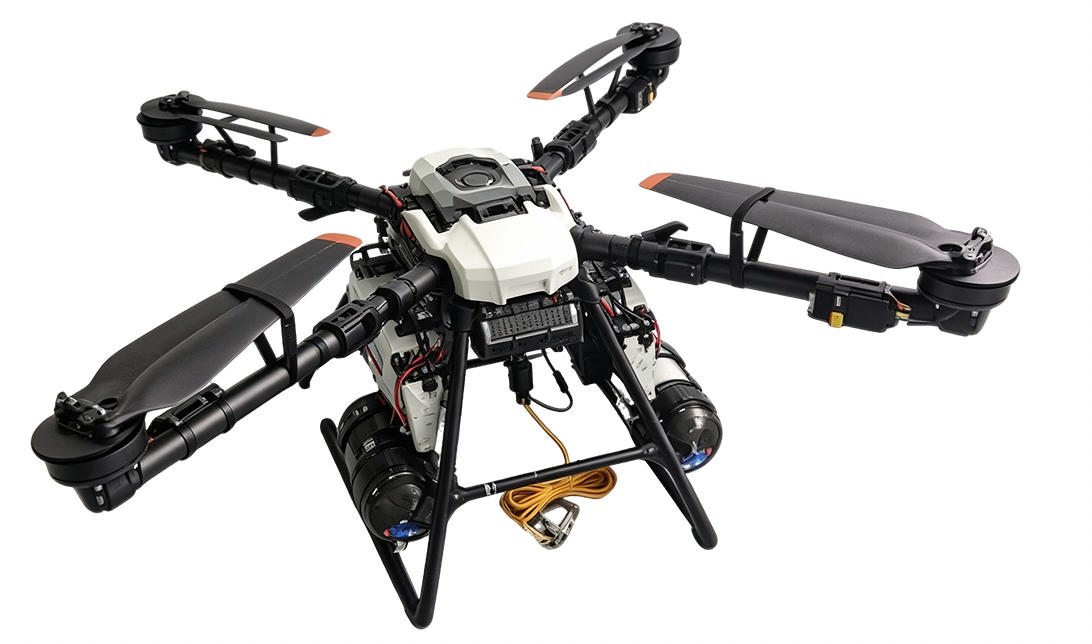

HV-150EHydrogen UAV

HV-150E Hydrogen UAV

HV-150E Hydrogen UAV

Achieving comprehensive improvements in payload type, endurance, intelligent inspection, and environmental adaptability.

HV-150E UAV Specifications (UAV Specifications)

ItemSpecifications
Max Take-off Weight149.9kg
Standard Payload50kg
Endurance90min
Power SystemHydrogen-electric hybrid
Hydrogen StorageStandard 3L@35MPa (customizable)
Fuel Cell System16kW（Air-cooled）
Lithium Battery2100 W·H (standard configuration)

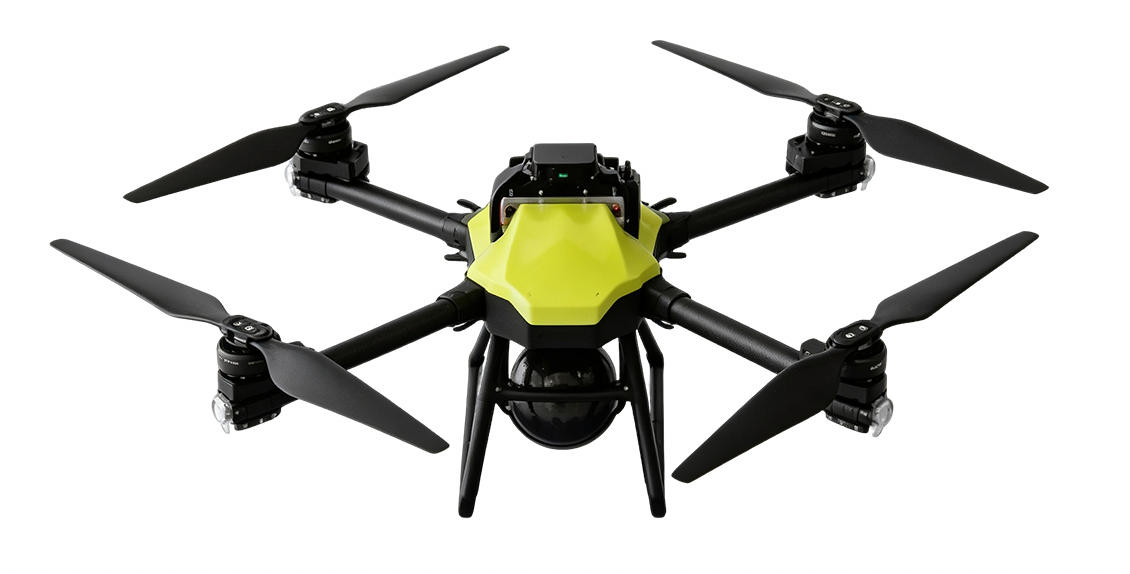

HV-40Hydrogen UAV

HV-40 Hydrogen UAV

HV-40 Hydrogen UAV

Designed for low-altitude inspection scenarios, achieving 90 minutes of endurance with a lightweight design.

HV-40 UAV Specifications (UAV Specifications)

ItemSpecifications
Max Take-off Weight40kg
Standard Payload10kg
Endurance70min
Power SystemHydrogen-electric hybrid
Hydrogen StorageStandard 1.2L@35MPa (customizable)
Fuel Cell System5kW（Air-cooled）
Lithium Battery900 W·H (standard configuration)

Application Scenarios

▱

Logistics & Transport

Solving material transport needs in remote regions, islands, and mountainous areas while improving delivery efficiency.

✚

Emergency Rescue

Equipped with professional rescue gear to provide rapid response and material support in complex disaster environments.

⌖

Industrial Inspection

Performing efficient inspections of power lines, oil pipelines, wind farms, and similar scenarios.

♢

Public Security

Suitable for security patrols, emergency command, environmental monitoring, and major event support.

Conventional UAV: multiple battery swaps
Hydrogen UAV: single continuous operation

Application Scenario Overview

  • Security Inspection: Urban plaza analysis and electronic reconnaissance
  • Emergency Lighting: Illumination for nighttime disaster rescue
  • Relay Communication: Stable on-site mobile base station
  • Emergency Search & Rescue: Equipped with visual and thermal imaging devices
  • Long-duration Inspection: Power grid and critical facility inspection
  • Water Conservancy Monitoring: River flood control and waterway inspection
UAVApplication Scenarios
⌃
