Long Endurance
The hydrogen energy system delivers continuous and stable power, significantly extending the operating time of UAVs and mobile equipment.

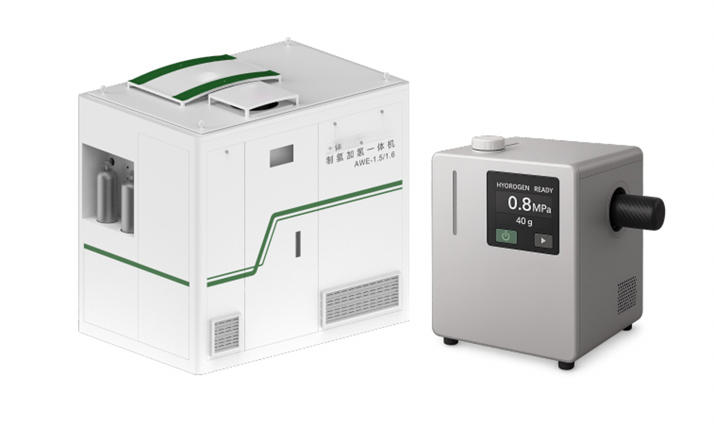

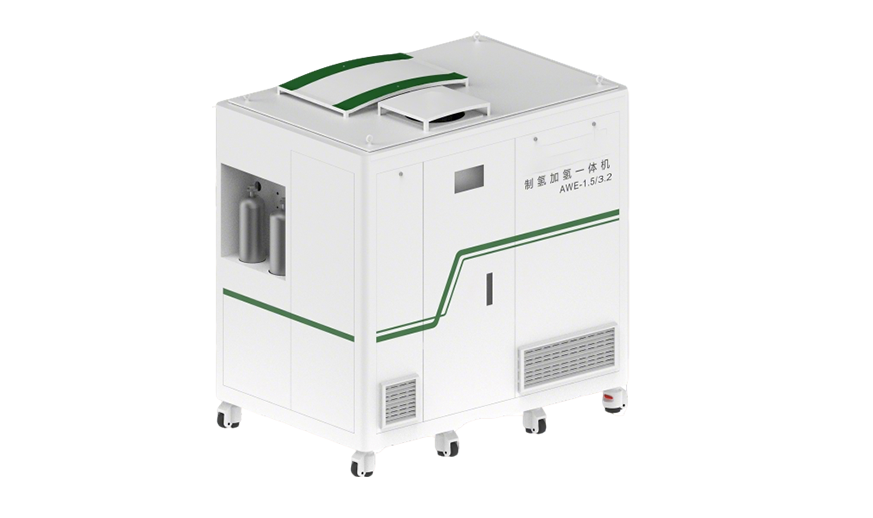

Integrated H2 Production & Refueling Unit
An intelligent device integrating efficient hydrogen production, safe storage, and rapid refueling—solving the long chain and high cost of the hydrogen "produce, store, transport, refuel" cycle.
Four Key Advantages
Wide Operating Temperature Range
Adapts to high and low temperature environments, maintaining reliable operation under complex climate conditions.
Unlimited Cycles
Hydrogen production, storage, and refueling form a closed loop, meeting long-term, continuous energy supply demands.
Eco-friendly & Safe
Clean and pollution-free, equipped with multi-level safety protection and intelligent monitoring for peace of mind.
Workflow
⌁Electricity
›ϟWater Electrolysis
›H₂Hydrogen
›▣Refueling
›⌘Aircraft
35MPa
Small High-Pressure Hydrogen Cylinder Integrated Unit
AWE-1.5/1.6 Hydrogen Production Equipment Specifications
ModelAWE-1.5/1.6
Hydrogen Output1.5Nm³/h，0.14kg/h
Hydrogen Purity≥99.99%
Output Pressure35MPa
Control MethodPLC
Refueling Timeapprox. 10 min
0.8MPa

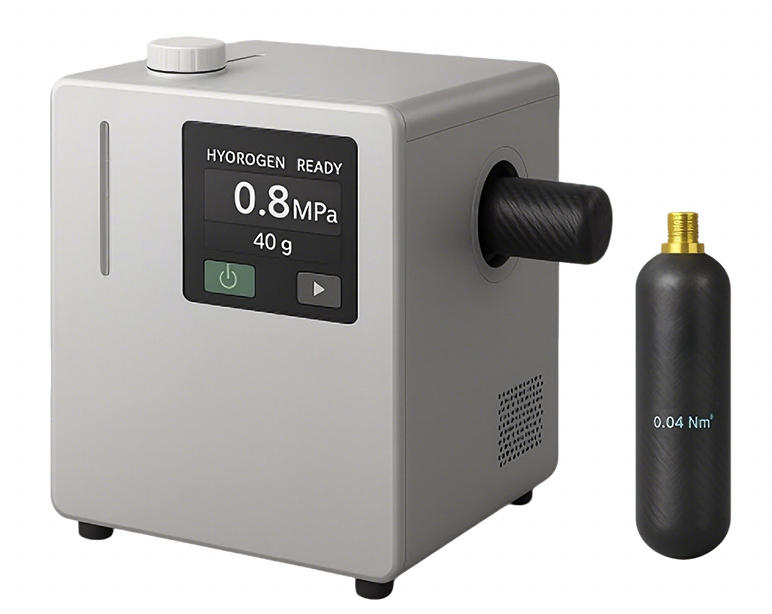

Micro Low-Pressure Hydrogen Cylinder Integrated Unit
AWE-0.04 Hydrogen Production Equipment Specifications
ModelAWE-0.04
Hydrogen Output0.04Nm³/h，3.6g/h
Hydrogen Purity≥99.99%
Output Pressure≤1.02MPa
Control MethodPLC
Hydrogen Tank Capacity40g
Application Scenarios
Yulin Shared Hydrogen Bike · Investment Return Estimate (300 units)
Investment / Cash Flow ItemAmount
Vehicle Procurement & Supporting Facilitiesapprox. CNY 1.05 million
Integrated H2 Production & Refueling Unitapprox. CNY 1.20 million
O&M and Platformapprox. CNY 0.20 million
Estimated Annual Comprehensive RevenueCNY 0.705-1.205 million
Hulunbuir Forestry Inspection
Using H2 production and refueling equipment to provide continuous energy for long-endurance UAVs, reducing energy supply costs in remote areas.
Value & Return Estimate
Diversified revenue streams from equipment leasing, operation services, and energy supply enhance the project lifecycle value.
